The all-new-air rotary heat exchanger air treatment system is an environmentally-friendly, refrigerant-free system. Using a renewable heat source (thermal solar panels, biomass, heating network, etc.), the innovative air handling system provides an environmentally-friendly solution for ventilation, heating and air conditioning in buildings.

An air handling unit for continuous temperature and humidity control.
Intelligent control of one to three rotary heat exchangers (recovery/enthalpy/dessication) maintains indoor comfort in all seasons.

The all fresh air system saves
25% heat, 50% electricity.

Compared with equivalent standard AHU systems coupled with a heat pump.

RE2020

Our air handling system reduces energy consumption in all seasons for heating and cooling. This technology enables us to meet our primary energy consumption (Cep) targets (Cf.rule Th-XX-XX).

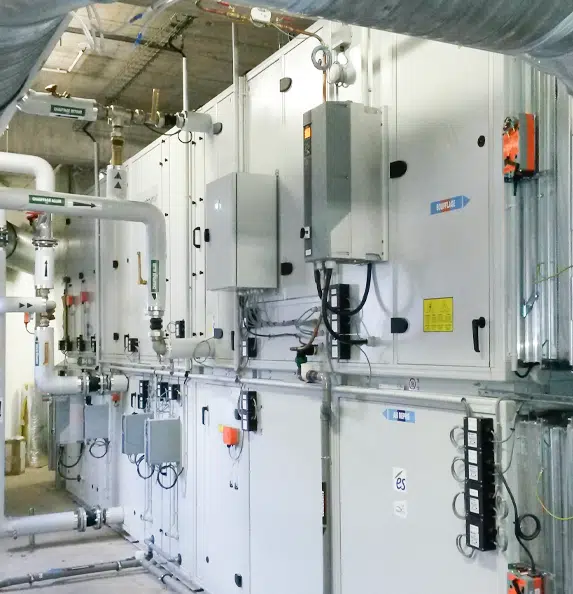

The air handling system in pictures

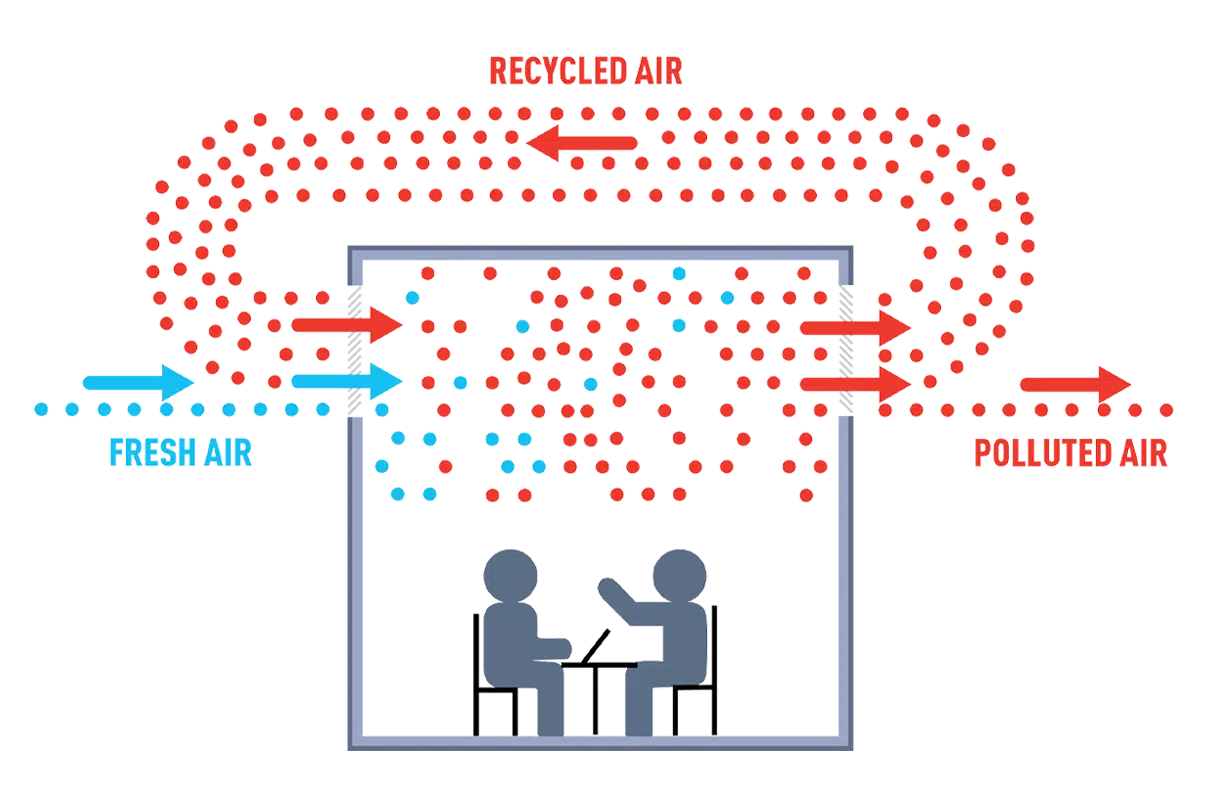

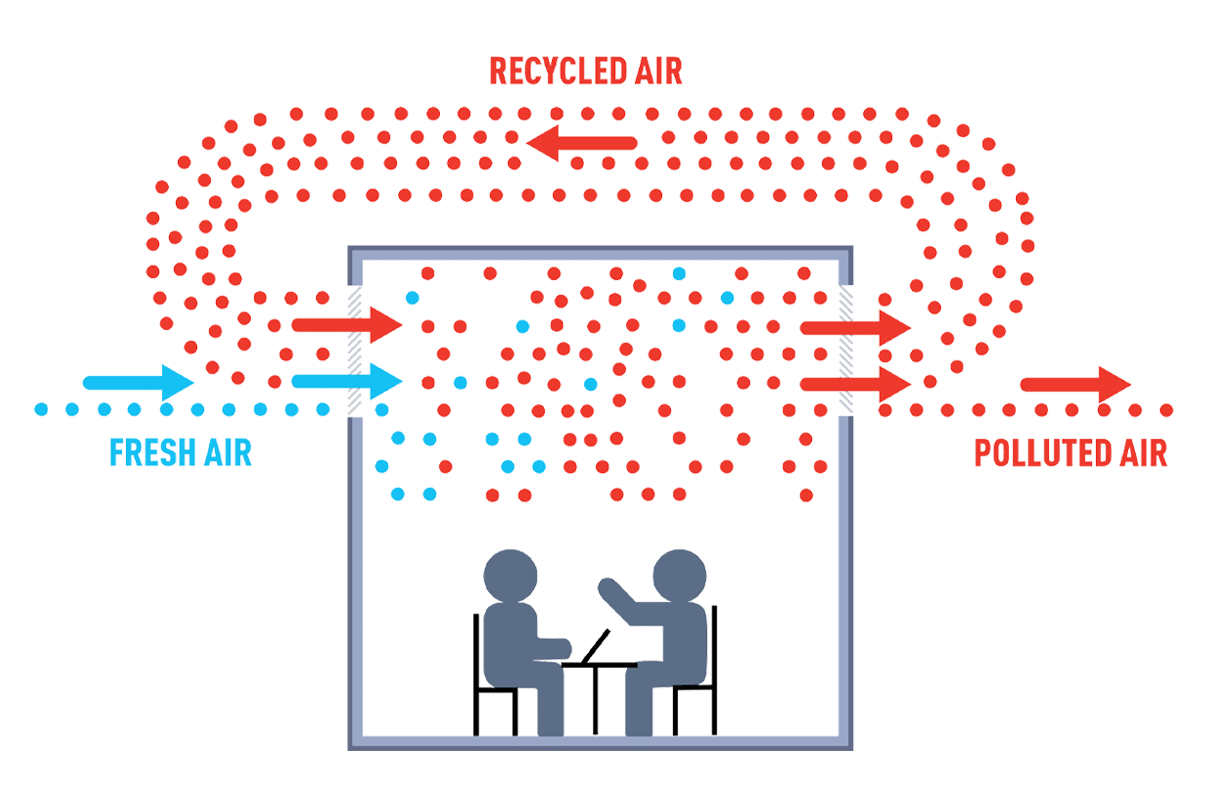

Existing system

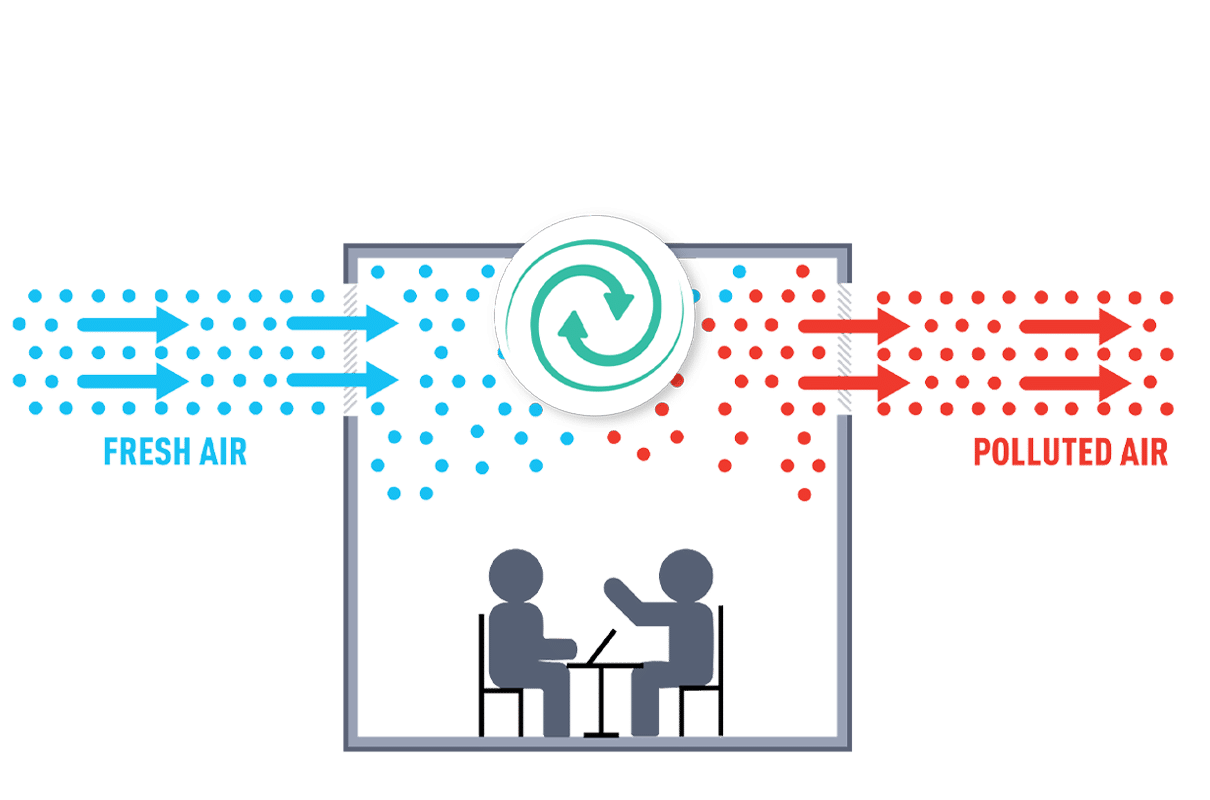

Solution Genatis

Commonly used air handling systems operate by recycling air in order to save energy. However, recycling air that has been extracted from the building can contaminate the new air with viruses or bacteria, and recycling air can lead to a build-up of pollutants in the air.

Genatis has designed an air handling system that operates with 100% fresh air and no air recirculation, avoiding contamination of fresh air by extracted air.
The components and operation of our wheels are designed to avoid contamination.

Benefits & advantages

Economy

The various rotary exchangers can be used to recover either heat or humidity, while reducing the use of the hot coil. The use of an adiabatic cooler to lower the temperature in summer avoids the need for an electricity-consuming cold battery.

Environment

Renewable heat source and recovery wheel for moderate, clean use of heat production. No use of ozone-depleting refrigerant gases. In all seasons, even in summer, the system’s bio-climatic operation regulates airflow at its maximum efficiency level to reduce power consumption.

Health

The air handling system operates without air recirculation and with 100% fresh air. The system’s variable airflow automatically provides the right amount of fresh air to continuously remove pollutants (trichloramines, volatile organic compounds, etc.).

Comfort

The air handling system operates without air recirculation and with 100% fresh air. The system’s variable airflow automatically provides the right amount of fresh air to continuously remove pollutants (trichloramines, volatile organic compounds, etc.).

How to improve and moderate thermal comfort in an aquatic center ?

As part of the modernization of the Sarralbe swimming pool, the communauté de communes de Sarreguemines Confluences decided to replace the old air handling system, comprising two separate units for the pool hall and changing rooms. The old system was inadequate and partially dysfunctional. The swimming pool, with a 250m² pool and a total surface area of 990m², requires the treatment of a volume of 4000m³.

At present, the choice has been made to open the roof in summer, accepting outdoor conditions without specific air treatment for dehumidification or cooling.

Integrating Genatis solutions

Advisors to support your projects
